Specifications
Vehicle Attachment
Tow ball (50mm)
Max No. Of Bikes
2
Rack Weight
17.7 kg
Rack Dimensions
1345 x 663 x 610~830
Max Load Weight
60 kg
Max Per Bike
30 kg
Bike Attachment
Ratchet straps for wheels, plus lockable frame clamp
Bike Wheel Base
MAX: 137.5cm (26" wheel) / 139.3cm (29")
Distance Between Bikes
300mm
Max Tyre Size
4"
E-Bike Suitable
Specifically designed for e-bikes
Carbon Frame Compatible
YES (Do not over-tighten frame clamp)
Light and Number Plates
YES - Light board included (7 pin flat)
Power Plug
7 pin (flat)
Locking Options
Rack locks to tow ball. Frame clamp locks to bike.

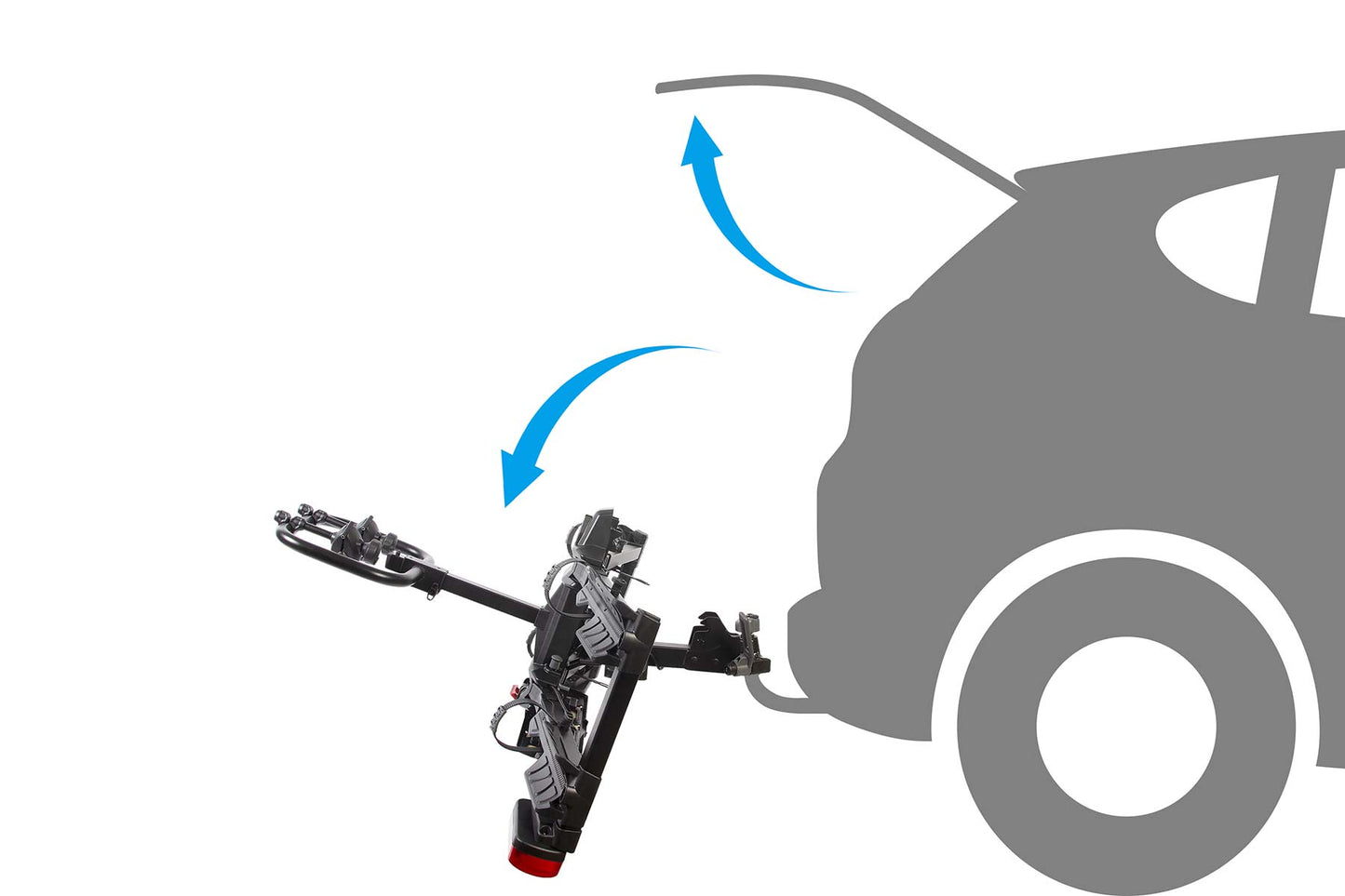

Tilt Down For Boot Access
Tilt with bikes loaded
Tilt Up When Not In Use
No
